EVR Slurry Pump

1. Doesn’t need any seal and the seal water;
2. Work normally even if the suction volume is not enough;
3. Single casing structure with the advantages of light weight, small volume, easy installation;
4. Anti-corrosive wet parts made of natural rubber;
5. Transmission shaft and suction pipe could be chosen according to liquid surface of the slurry pool;
6. Able to run smoothly under various speeds.

Parameters and Selection
  • Model
    EVR-300T
  • Capacity
    540-1548 m³/h
  • Head(TDH)
    5.5-26 m
  • Allowable Max. Power
    200 kW
  • Speed
    350-700 r/min
  • NPSH
    N/A
  • Model
    EVR-250T
  • Capacity
    320-2100 m³/h
  • Head(TDH)
    7-33 m
  • Allowable Max. Power
    200 kW
  • Speed
    400-750 r/min
  • NPSH
    N/A
  • Model
    EVR-200S
  • Capacity
    189-891 m³/h
  • Head(TDH)
    6.5-37 m
  • Allowable Max. Power
    110 kW
  • Speed
    400-850 r/min
  • NPSH
    N/A
  • Model
    EVR-150S
  • Capacity
    108-479 m³/h
  • Head(TDH)
    8.5-40 m
  • Allowable Max. Power
    110 kW
  • Speed
    500-1000 r/min
  • NPSH
    N/A
  • Model
    EVR-100R
  • Capacity
    54-289 m³/h
  • Head(TDH)
    5-36 m
  • Allowable Max. Power
    75 kW
  • Speed
    500-1200 r/min
  • NPSH
    N/A
  • Model
    EVR-65Q
  • Capacity
    18-114 m³/h
  • Head(TDH)
    5-31.5 m
  • Allowable Max. Power
    30 kW
  • Speed
    750-1500 r/min
  • NPSH
    N/A
  • Model
    EVR-40P
  • Capacity
    17-43.2 m³/h
  • Head(TDH)
    4-28.5 m
  • Allowable Max. Power
    15 kW
  • Speed
    1000-2200 r/min
  • NPSH
    N/A

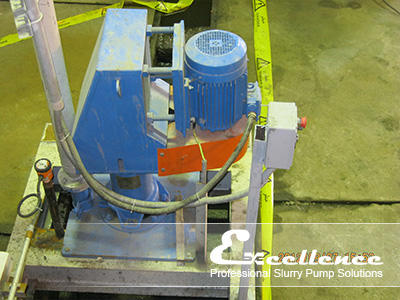

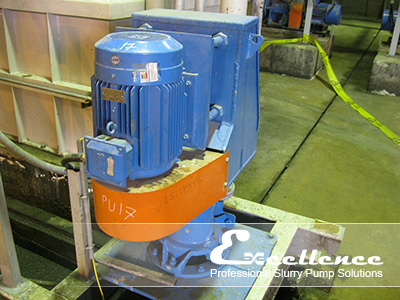

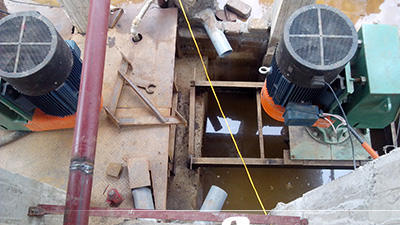

Application and Reference
Series EVR slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc.
Typical Application:
  • Iron Ore Dressing Plant
  • Copper Concentration Plant
  • Gold Mine Concentration Plant
  • Molybdenum Concentration Plant
  • Potash Fertilizer Plant
  • Other Mineral Processing Plants
  • Alumina Industry
  • Coal Washery
  • Power Plant
  • Sand Excavation
  • Building Material Industry
  • Chemical Industry
  • Other industries

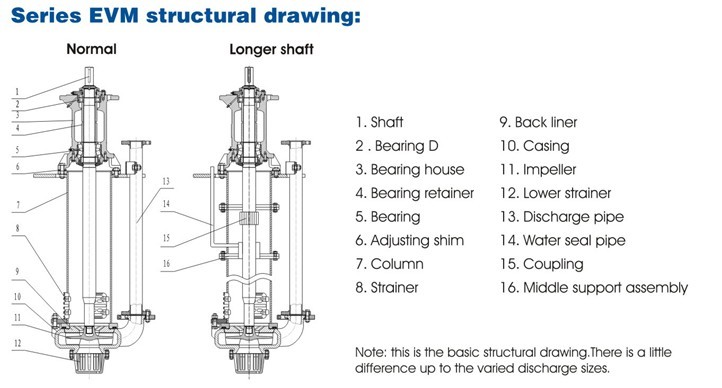

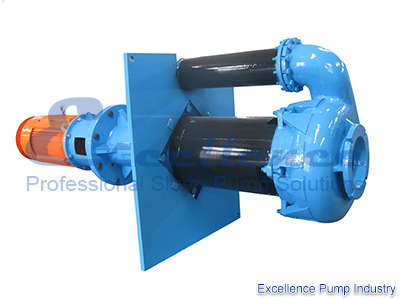

EVR Slurry Pump Structure
EVR series sump pumps are similar in EVM series. The major difference lies in the material of wet parts. The wet parts of EVR series are made of natural rubber, which are idea for the transportation of strong corrosive slurries without shape edge.



Standard Configuration
If there isn't any specified requirment, Excellence pump provides the following standard  configuration:

  • Shaft seal type:
    Centrifugal seal with packing seal
  • Discharge direction:
    Upright
  • Connection type:
    Customized
  • Pump color:
    Green
  • Package:
    Fumigation-free wooden packaging
